Mercedes Arocs DRL unit 2022+ orange

Mercedes Arocs DRL unit orange, year 2022+.

Do you want to replace your original white LED daytime running lights of your Mercedes Arocs with an orange color? Then this DRL set might be the set you are looking for. This set consists of two LED plates with which you can change both the left and right module. You can easily replace the originally mounted lighting with the orange variant. At the bottom of the page you will find the steps you need to follow for this.

Because you want to know before purchasing that the set is suitable for your truck, we have listed a number of important points here. It is important that the originally mounted units are exactly the same as those shown in image two. If the originally mounted unit does not match, this replacement lamp will not fit. Furthermore, the Mercedes Arocs daytime running light orange is only suitable for models from 2022+. Please note, the DRL unit does not have an E-mark, this means that you must reassemble the original for the MOT.

Edit:

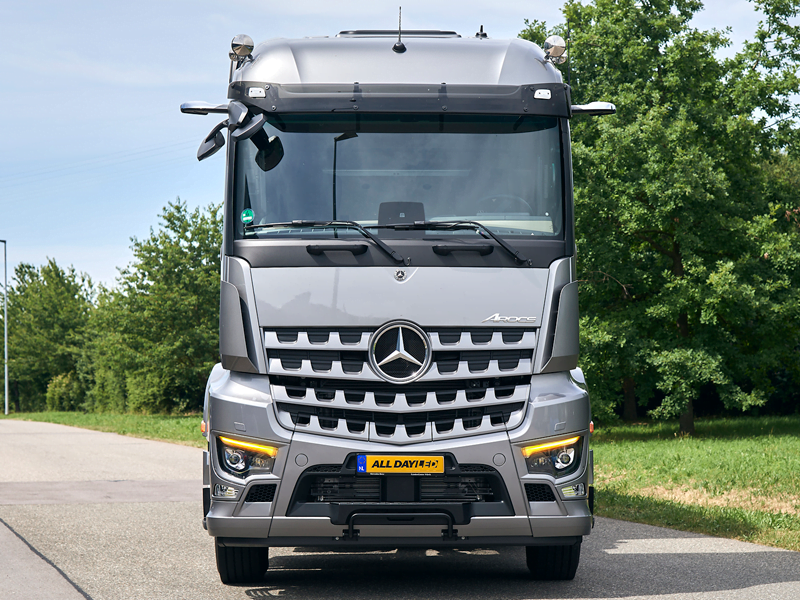

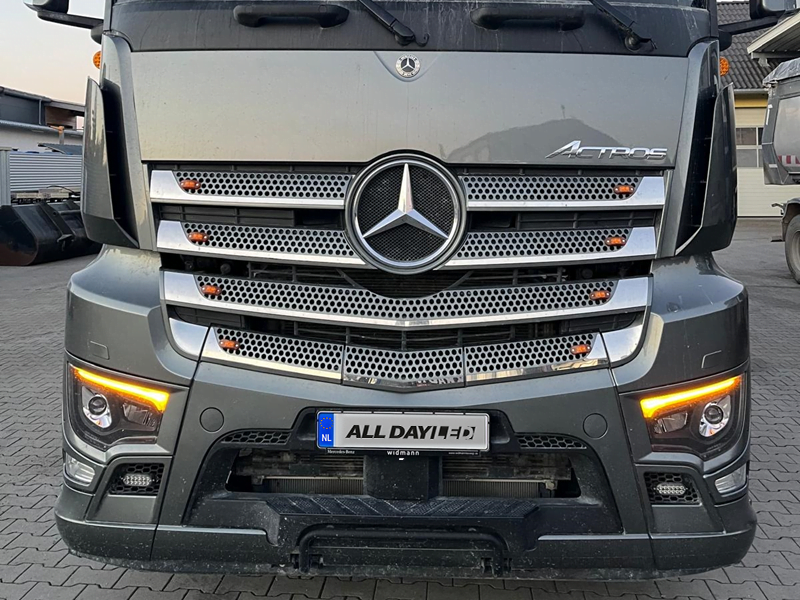

To install the Mercedes Arocs DRL unit orange you need to follow the following steps. The installation of the orange DRL unit will take about an hour per headlight. In pictures 3, 4, 5 and 6 you can see an example of how the set will light up after installation.

1. Remove the connector from the existing lighting.
2. Remove the screws securing the original diode holders.
3. Remove the diode holders from the cooling plates.
4. Remove the thermal paste and clean the surface well.
5. Bring the supplied thermal paste in a thin even layer to the cooling plates where the lamp will be mounted.
6. Push the diode holder into the thermal paste and secure it carefully with the original screw.
7. Insert the connector into the new diode holder.
8. The daytime running lights of your Mercedes Arocs are ready for use.

Do you not only want to replace the orange DRL unit of your Mercedes Arocs from 2022+? But are you looking for more LED lighting that you can mount in or around your truck? Then take a look at the page Mercedes lighting.
